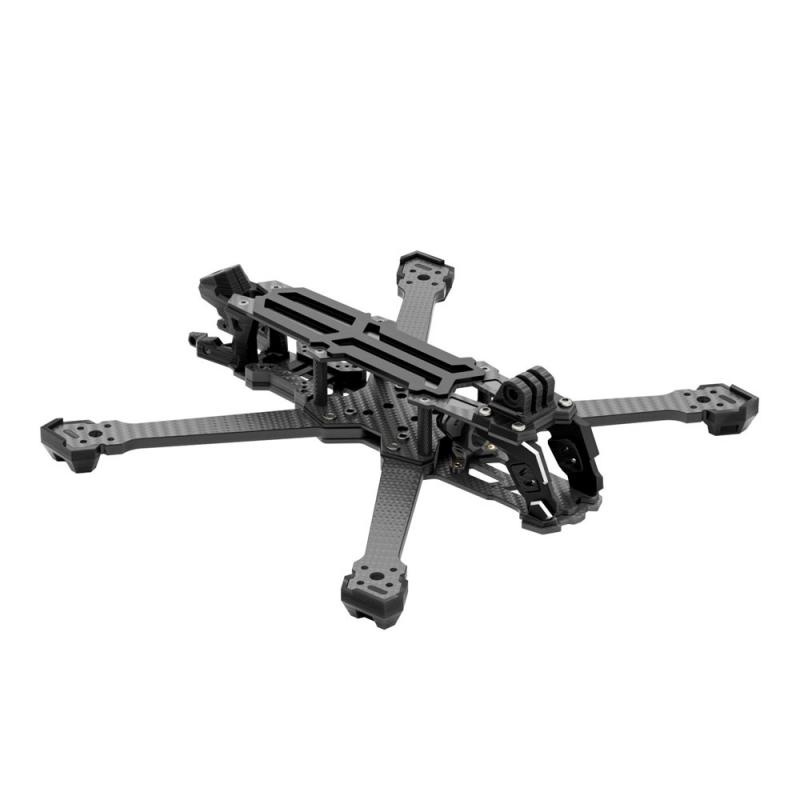

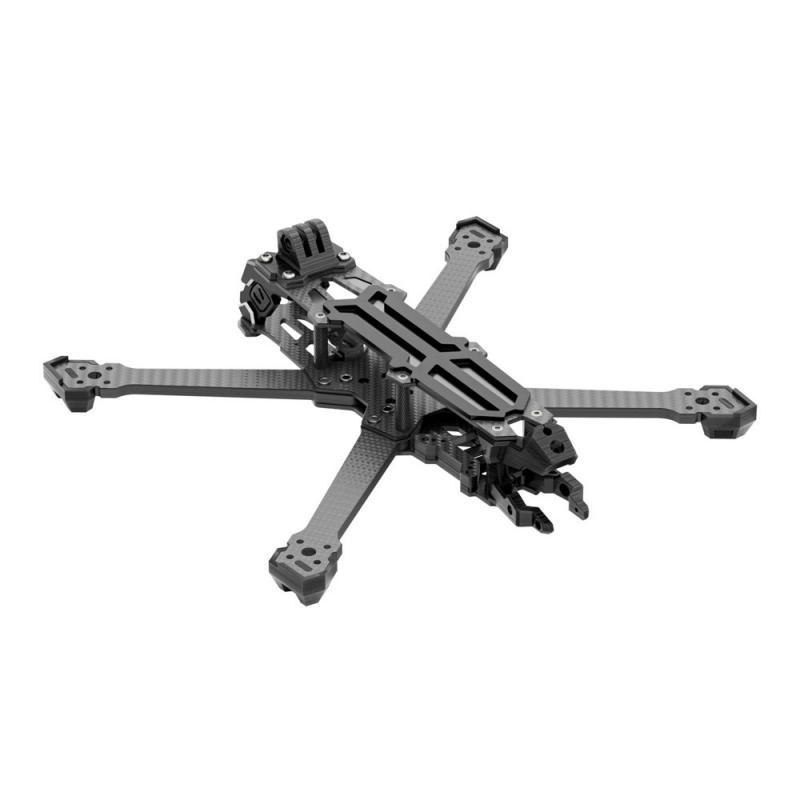

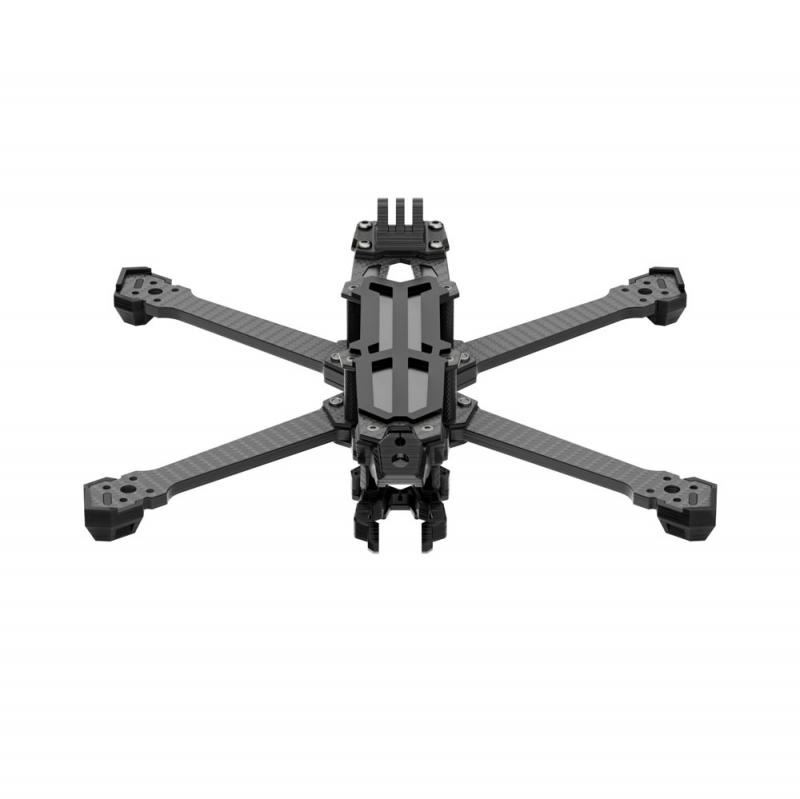

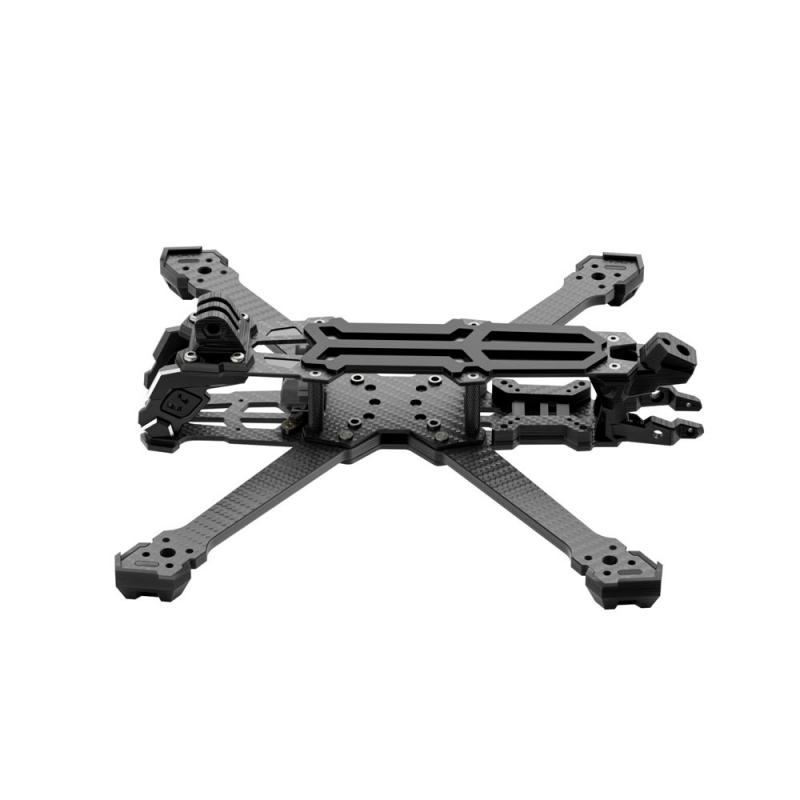

GEPRC GEP Vapor X5 Frame

52.50 $
Ships immediately
Product support
0 Ratings

The GEP-Vapor-X frame is expertly crafted for freestyle flying. Its wide X-frame design boosts stability and maneuverability, offering an ideal balance of style and durability for exceptional flight performance.

Features

  • The 5mm wide carbon fiber arms ensure overall rigidity.
  • The camera side panels and front guard offer double protection for enhanced durability.
  • Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.
  • The quick-release design makes maintenance and assembly a breeze.

Specification

  • Wheelbase: 230mm
  • Top Plate Thickness: 2.0mm
  • Middle Plate Thickness: 2.0mm
  • Arm Thickness: 5.0mm
  • Bottom Plate Thickness: 2.5mm
  • FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
  • VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
  • Motor Mounting Hole Size: 16x16mm
  • Camera Mounting Hole Size: 19mm / 20mm
  • Recommended Propeller: 5-inch
  • Weight: 185.6g ±2g

Includes

  • 1 x GEP-Vapor-X Frame
  • 2 x M20*250mm battery straps
  • 2 x Battery Silicone Pads
  • 1 x Set of screws
  • 1 x Printout package
  • 1 x L-shaped screwdriver (1.5mm)
  • 1 x L-shaped screwdriver (2mm)
  • 1 x L-shaped screwdriver (3mm)
  • 1 x M8 wrench
