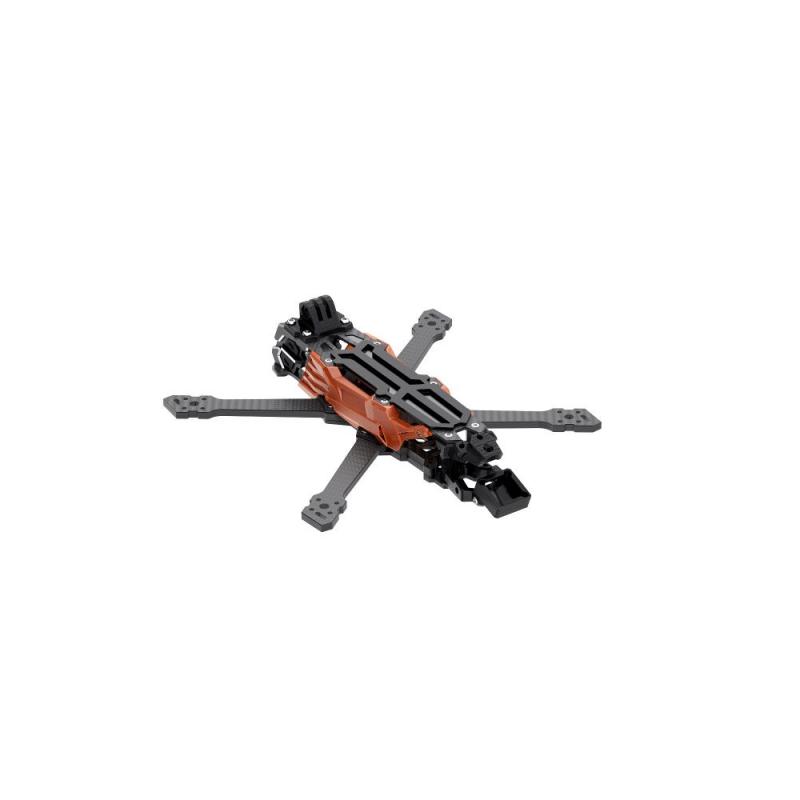

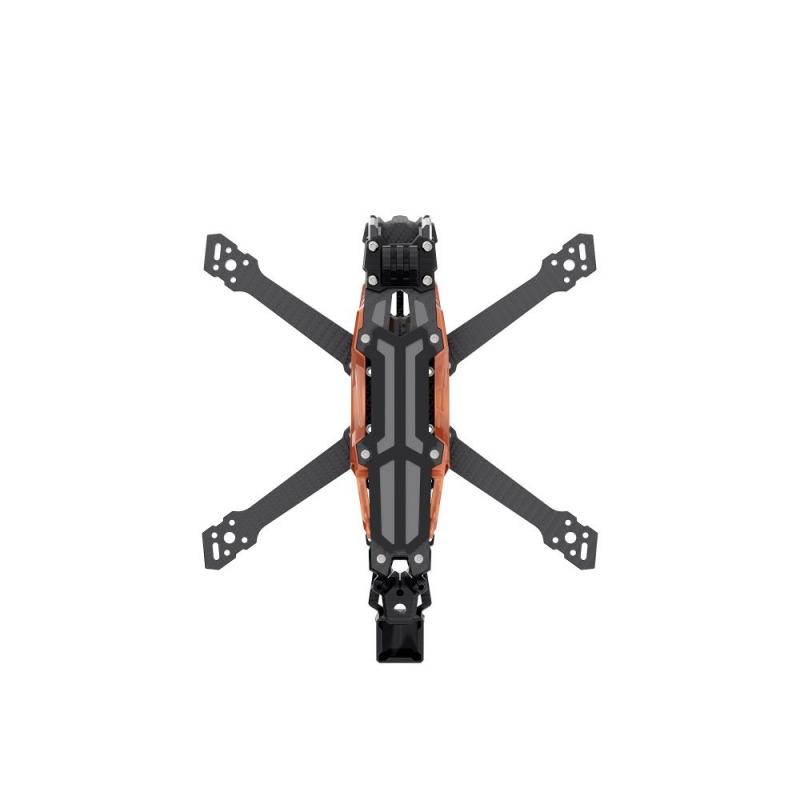

GEPRC GEP Vapor X5 O4 Pro Frame
57.00 $
Summary
The GEPRC team presents the Vapor O4 Pro frame, designed specifically for the DJI O4 Air Unit Pro.
With redesigned aluminum camera parts and improved vibration-damping silicone, this frame offers better compatibility. The new mech-inspired side panels add a bold, sharp look, enhancing the frame’s stylish design. Made from high-strength carbon fiber, it’s lightweight yet durable, ensuring top-notch performance in any flight.
With its XH structure, the GEP-Vapor-X O4 Pro frame offers superior stability and precise handling.
Features
- 5mm wide carbon fiber arms for better rigidity and durability.
- Dual protection with camera guard side panels and a front lip design for better impact resistance.
- Quick-release design for easy repairs and maintenance.
- Redesigned aluminum camera mount, perfectly matched to the O4 Pro VTX.
- New mech-inspired side panels with a bold, sharp design.
- Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.
Specifications
- Wheelbase: 230mm
- Top Plate Thickness: 2.0mm
- Middle Plate Thickness: 2.0mm
- Arm Thickness: 5.0mm
- Bottom Plate Thickness: 2.5mm
- FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
- VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
- Motor Mounting Hole Size: 16x16mm
- Camera Mounting Hole Size: 19mm / 20mm
- Recommended Propeller: 5-inch
- Weight: 206±5g
Includes
- 1 x GEP-Vapor-X5 O4 Pro Frame
- 2 x M20*250mm battery straps
- 2 x Battery silicone Pads
- 1 x Set of screws
- 1 x Printout package
- 1 x L-shaped screwdriver (1.5mm)
- 1 x L-shaped screwdriver (2mm)
- 1 x L-shaped screwdriver (3mm)
- 1 x M8 wrench
