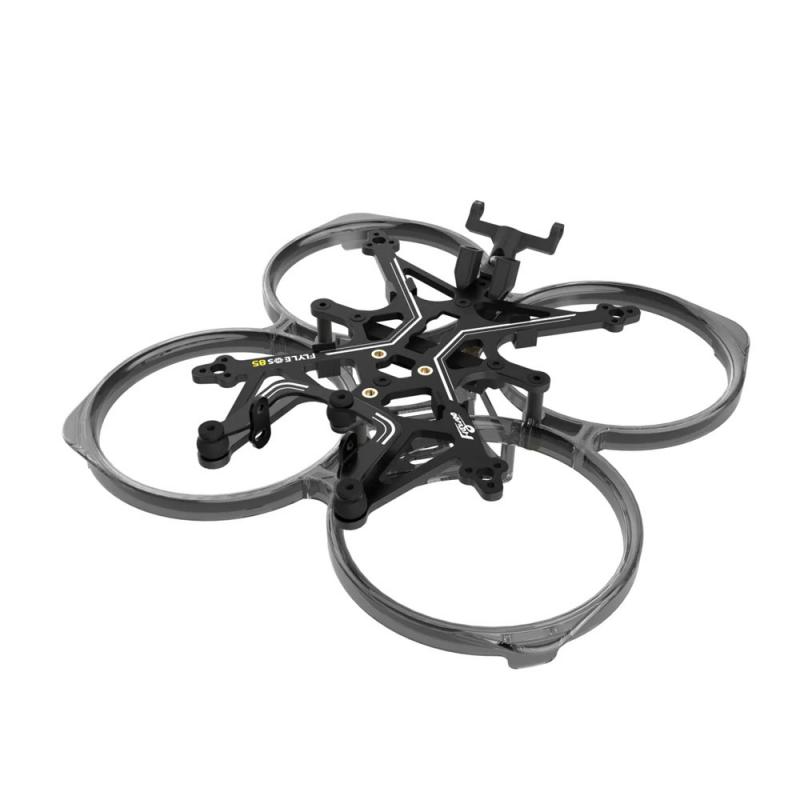

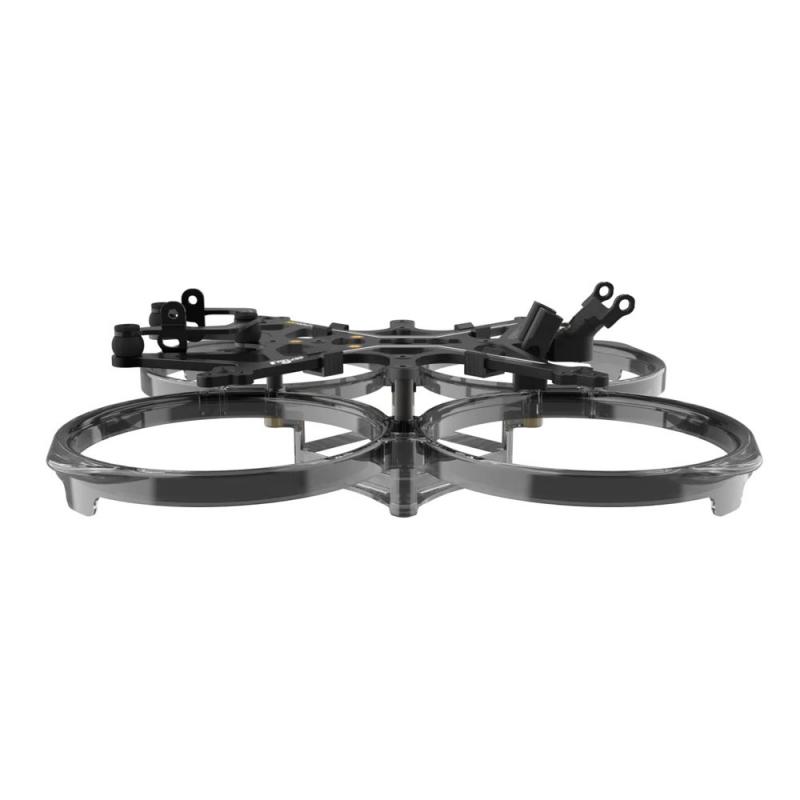

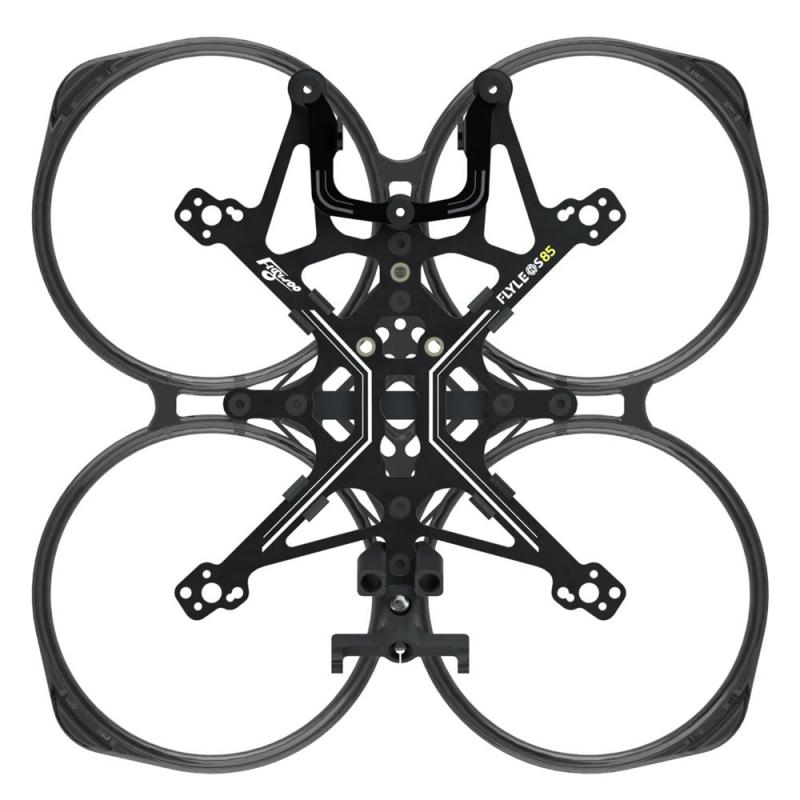

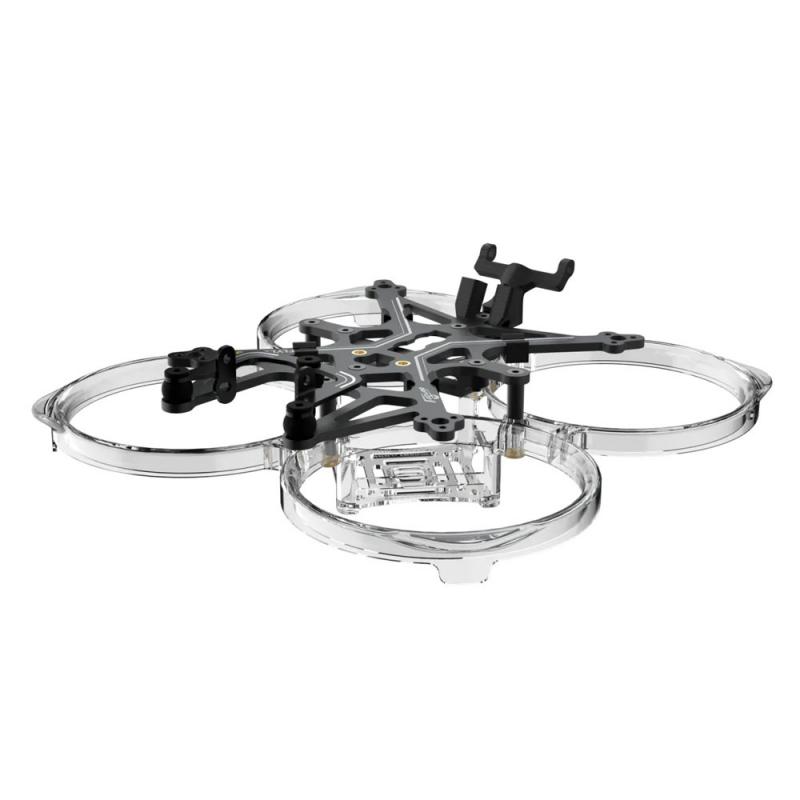

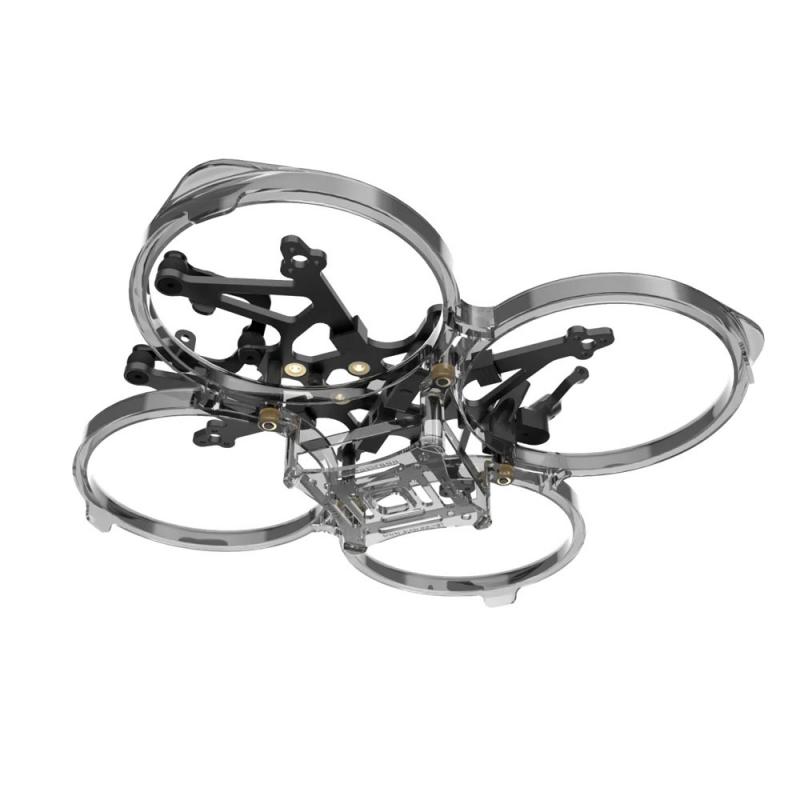

The Flylens 85 frame is a 2-inch whoop-type frame designed for indoor and narrow space flight. It is compatible with various mainstream digital and analog image transmission systems. The frame is equipped with an injection-molded protective ring and a carbon black treatment process.

Version 1.2, added support for 9mmx9mm motor mounting holes.

The Flylens series opens up the field of micro-crossing machine film and television creation, providing the latest and most reliable solutions for exploring and capturing new perspectives.

Design Features

• Latest three-point CNC damping platform design to perfectly eliminate high-frequency vibration and jelly effects
• Quick-release structure, which only requires 4 screws to separate the upper and lower layers
• Supports the installation of neon light strips and external GO3 and other small sports cameras
• Flight control hole position is 25.5x25.5mm, the image transmission compartment hole position is 20x20/25.5x25.5mm, and the motor hole position is 6.6mm
• Compatible with various mainstream devices on the market

Highlights

• Compact and lightweight design (<250g) for a 2-inch drone.
• Supports O3 digital image transmission for long-range, 4K high-definition, low-latency transmission.
• High-strength PC injection-molded protective ring for enhanced durability and safety.
• Unique CNC damping platform for stable video recording.
• Bottom-mounted image transmission PC compartment for protection and improved heat dissipation.
• Quick-release frame design for easy component separation.
• Reverse thrust propeller configuration for stable flight and extended endurance.
• Compatible with wireless controlled neon light strips and external devices.
• Specifications
• Model: Flylens 85
• Main Board Thickness: 2mm
• CNC Gimbal Thickness: 1mm
• Protective Ring Material: PC+
• Flight Control Hole Position: 25.5x25.5mm
• Image Transmission Hole Position: 20/25.5mm Motor Hole
• Position: 6.6mm/Hole 1.4mm
• Propeller Size: 2inch

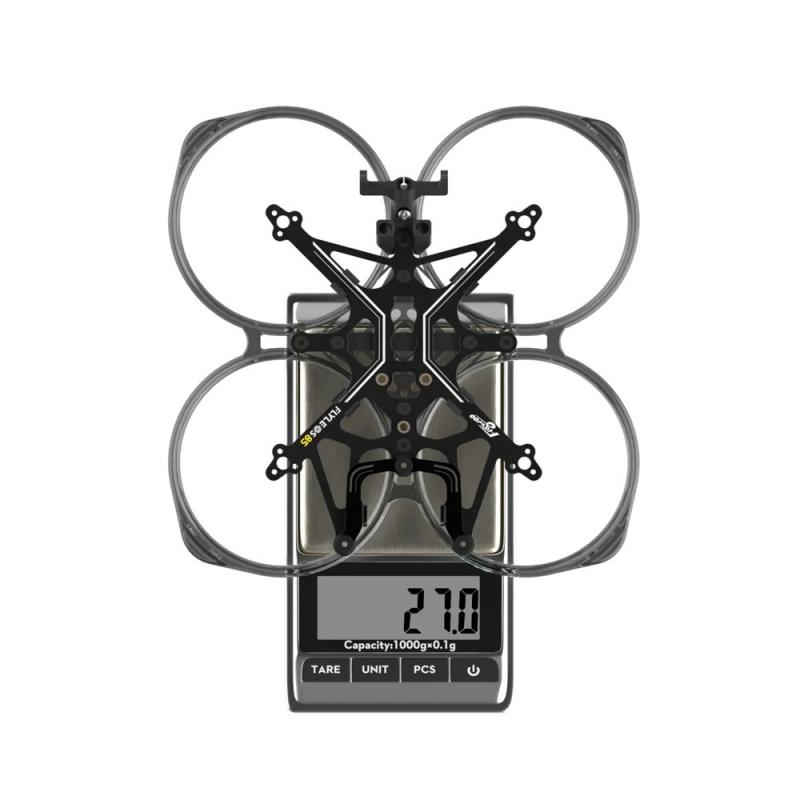

• Weight: 27g
• Camera Hole Position (Standard): 20mm
