Features

65mm diagonal, squished X geometry, for 31mm props
1.5mm Carbon Fiber / Individual Nylon ducts hybrid construction
Low-profile camera mount, no props in view, no tilt offset
Low Center of Gravity, by bringing the AIO closer to the frame/motors
Allows mounting with USB pointing up for easy accelerometer calibration
No need for a canopy as all electronics are tucked safely between the ducts
Maximum rigidity where it matters most; connecting the motors to the FC
Easy maintenance, break one duct, replace only the single duct
Lightweight, less than 19.5g with HM DiamondF4
As always, this is a project that Fractal designed for himself first, that Fractal put together in a product to share with any pilot that would like to experience the same level of requirements!
Designed with love, by a pilot, for pilots.

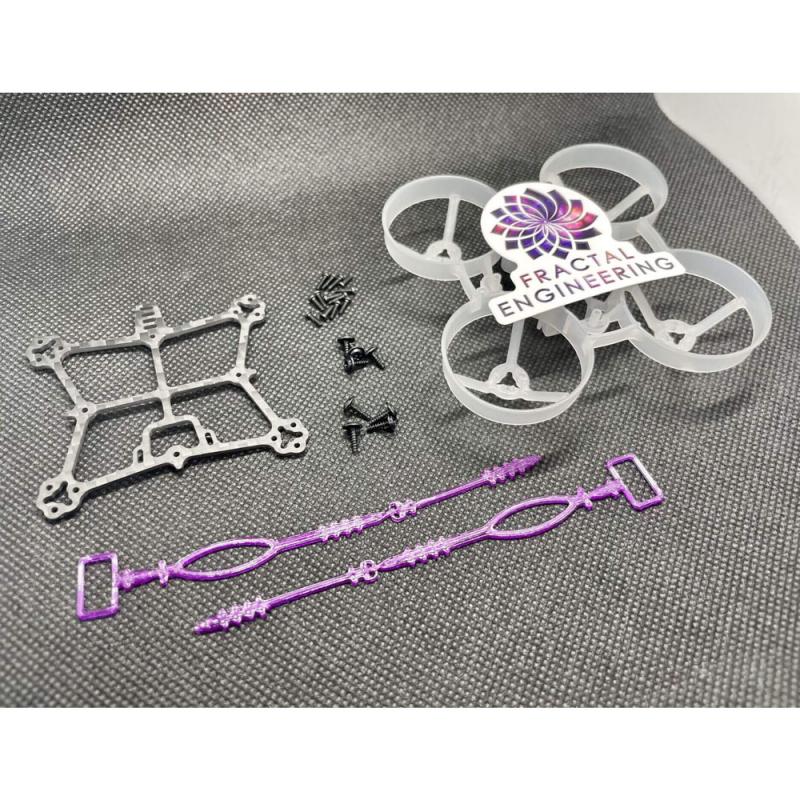

This frame kit contains everything you need to build your own craft, based off virtually any components.
Fractal do however recommend a 4-1 AIO (FC/ESC/RX/VTX) to keep the part count to a minimum, but there should be enough room to stack a separate VTX or RX on top of the AIO
It has a 25.5×25.5mm mounting pattern for the AIO, and motor fixations for both 3xM1.4×6.6mm and 3xM1.6×5.5
The camera mount is 3D printed and universal – Fractal will upload the STL and Step files so you may print your own spares or season them to taste

Fractal 65 Kit
