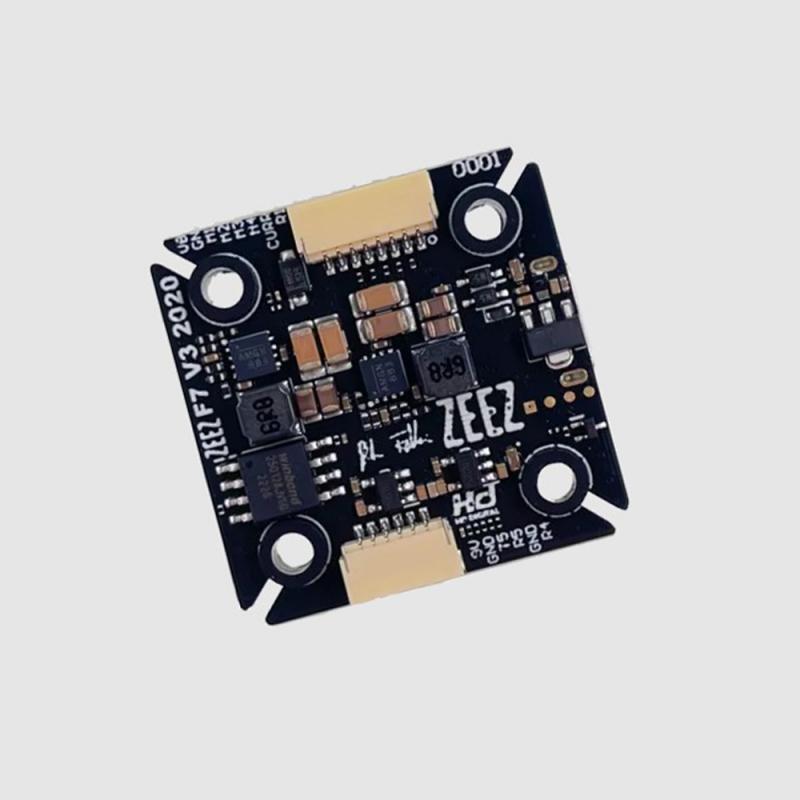

The ZEEZ F7 V3 2020 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit, with a simple plug and play configuration and 5V@3A regulator to power all the peripheral.

It uses a powerful F7 processor along with top-of-the-line hardware:ICM42688P Gyro, BMP388 Barometer, with a separate power rail for cleanest data. The ZEEZ F7 V3 2020 comes in a standard 20x20 form factor.  There are 5 UARTS available as well as, I2C port, 16MB FLASH for Blackbox data record, an OSD chip for analog video.

Features

• MOUNTING HOLES - 20 x 20
• BATTERY INPUT - 3S-6S
• BEC 3A CONTINUOUS - 5V-9V
• MICRO CONTROLLER - STM32F722
• GYRO/ACC - ICM42688P
• BAROMETER - BMP388
• DJI AND CADDX VISTA COMPATIBLE - HD PLUG
• 8 MOTOR COMPATIBLE - X8
• BIGGER PADS FOR AN EASY ASSEMBLY

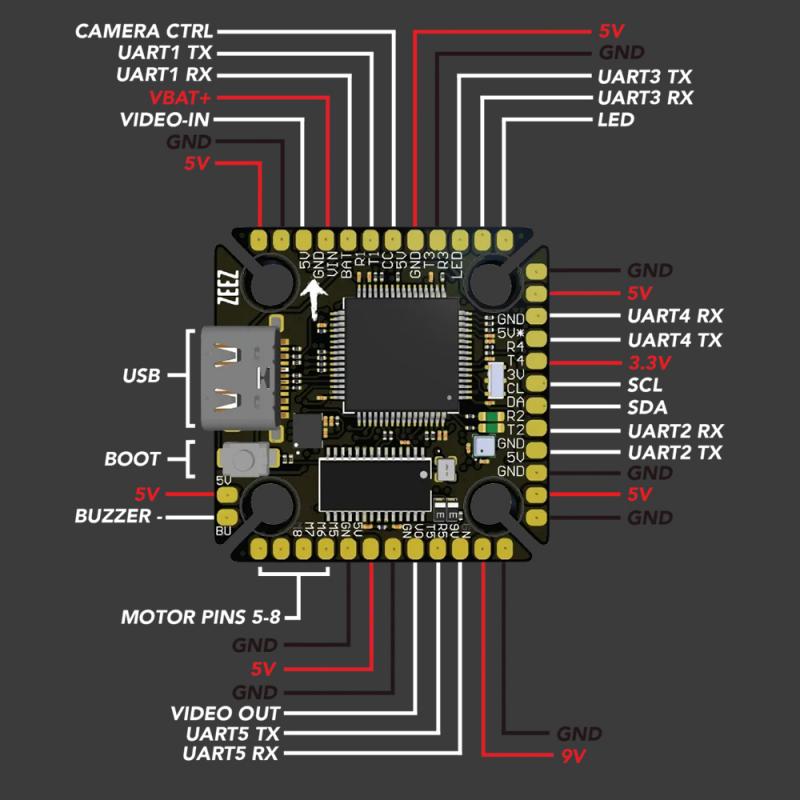

• 5 UARTS AVAILABLE
• ONBOARD 16MB FLASH
• CLEAN GYRO - NEW LAYOUT TO ENSURE CLEANEST POSSIBLE GYRO
