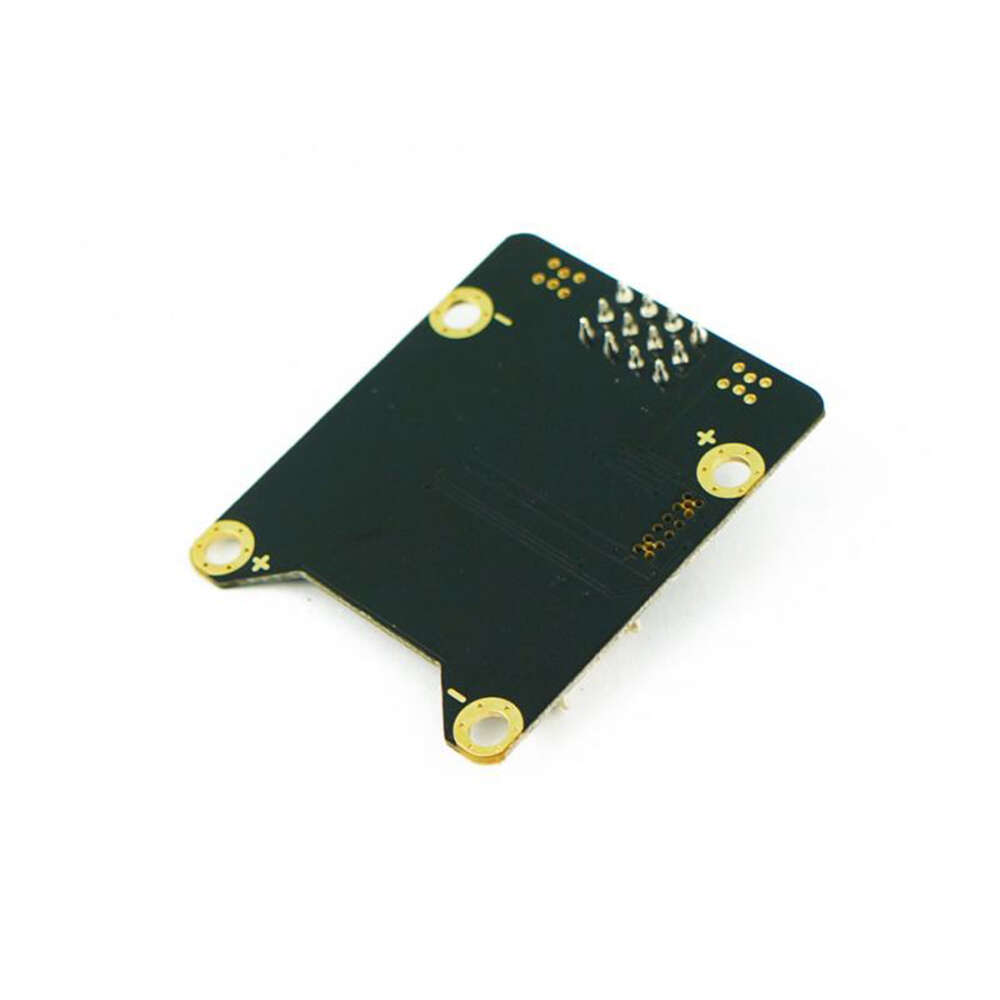

TBS Wing Layer is our latest add-on to to Powercube family. Together with the TBS FPVision it is the ultimatie package for small wings.

Features

• Additional BST port, (eg. for TBS GPS)
• 100A power connections for external ESC (connections after integrated 100A current Sensor on FPVision)
• Integrated servo connector adapter for Crossfire Micro V2 receiver
• Integrated PWM link for Powercube ESC (ESC will automatically connect to PWM1)
• 4.8V / 2A Servo BEC supply from FPVision (2A continuous, 3A peak, enough for two mid size Servos)
• Backup Servo BEC input with 2x 5A Diodes

Compatible with

• TBS Powercube FPVision
• TBS BULLETPROOF 25A 6S ESC (optional)
• Crossfire Micro V2 receiver (optional)

Includes

• 1x TBS Wing Layer
• 4x Brass Standoffs
• 4x Black Nut
