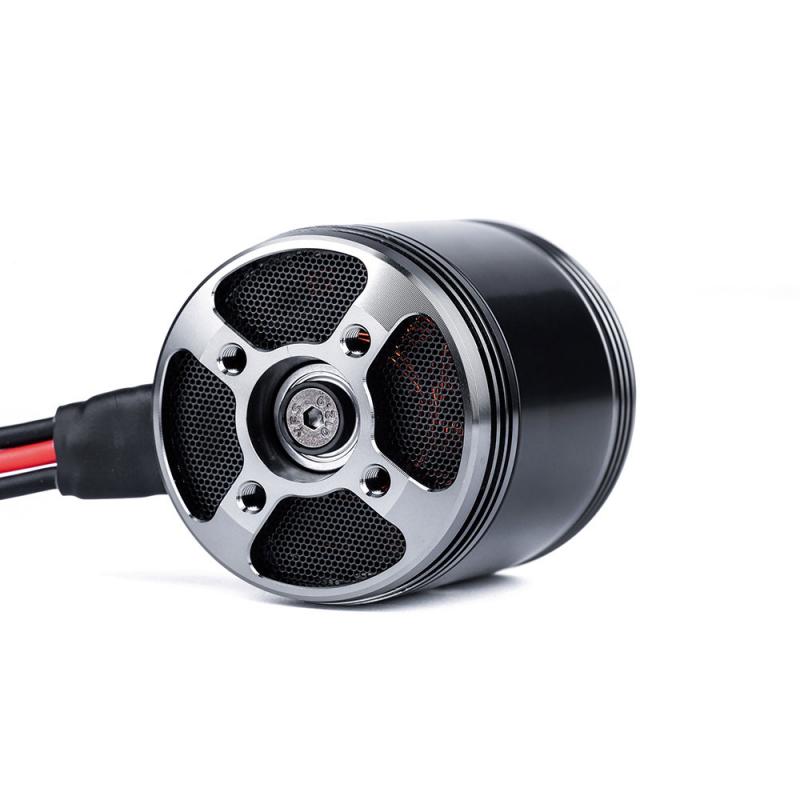

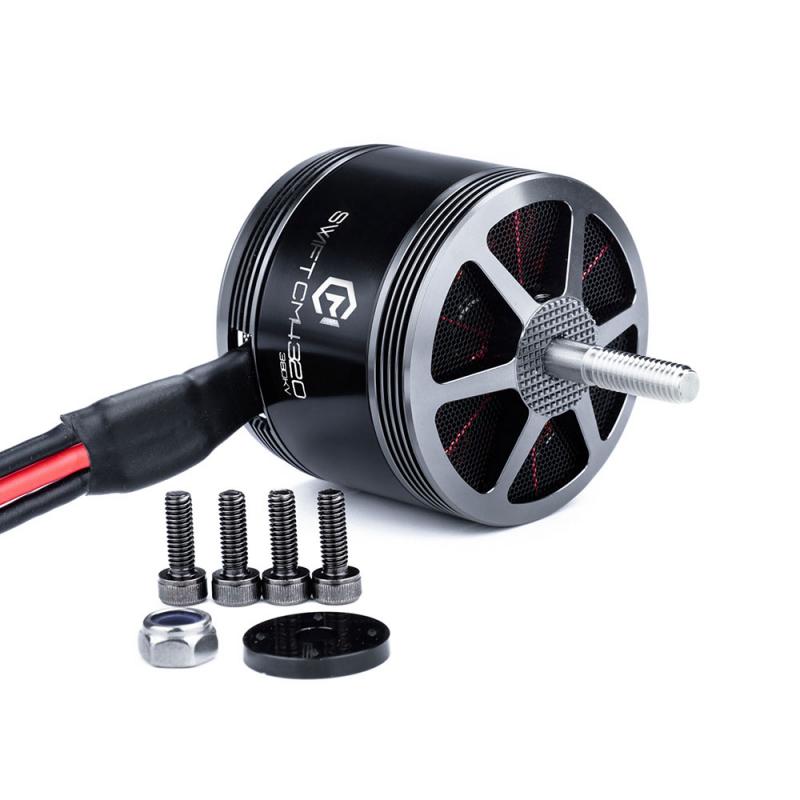

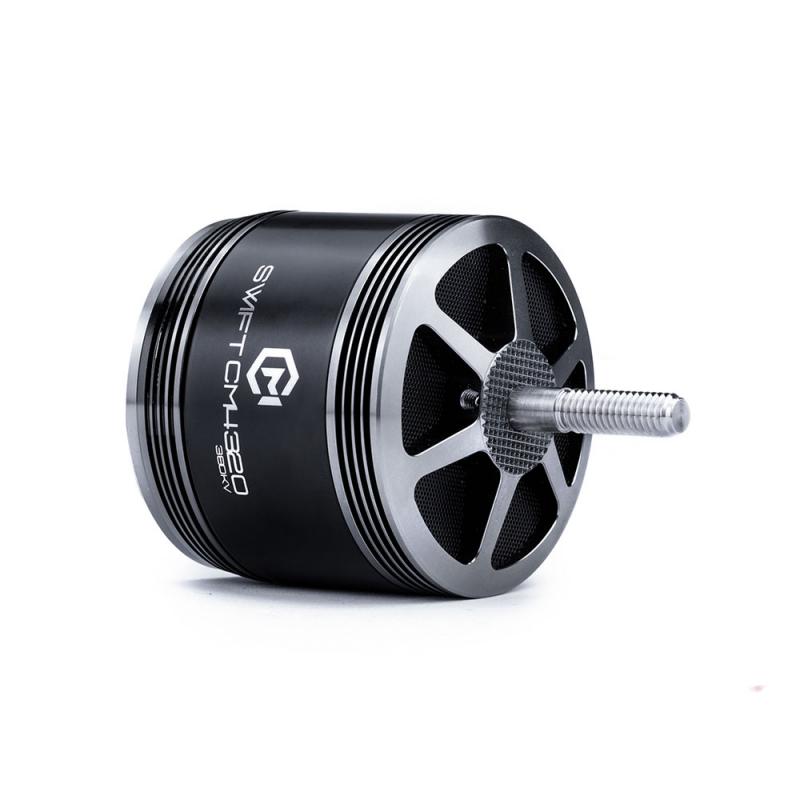

MAD Swift CM4320 V1 KV380
70.00 $
The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.
Two ultra-thin stainless steel dust filters are added inside the stator for proactive heat dissipation design.
The split exhaust blade is added inside the rotor.
Providing robust power for 3-12S, 13X10X3 inch propeller X4 X8 cinematic drones with heavy payloads
Motor Data
- Number of pole pairs: 7
- Stator: Anticorrosive
- Varnished wire Degree: 220°C
- Motor Size: D:51 × 73.2 mm
- Motor Balance: 180°C
- Propeller Mounting Holes: M6 Nut

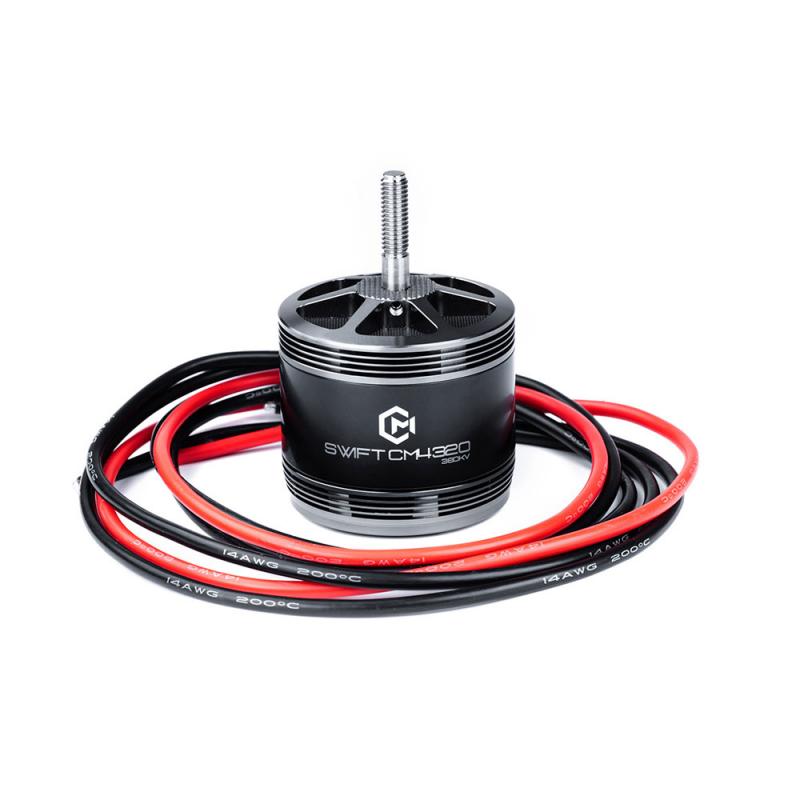

- Cable Length: 750 mm 14# Awg silicone
- Shaft Diameter: IN: 6 mm
- Motor Mounting Holes: D:30 M4×4
- Bearing: 606 ZZ *3
- Disruptive test: 500V
