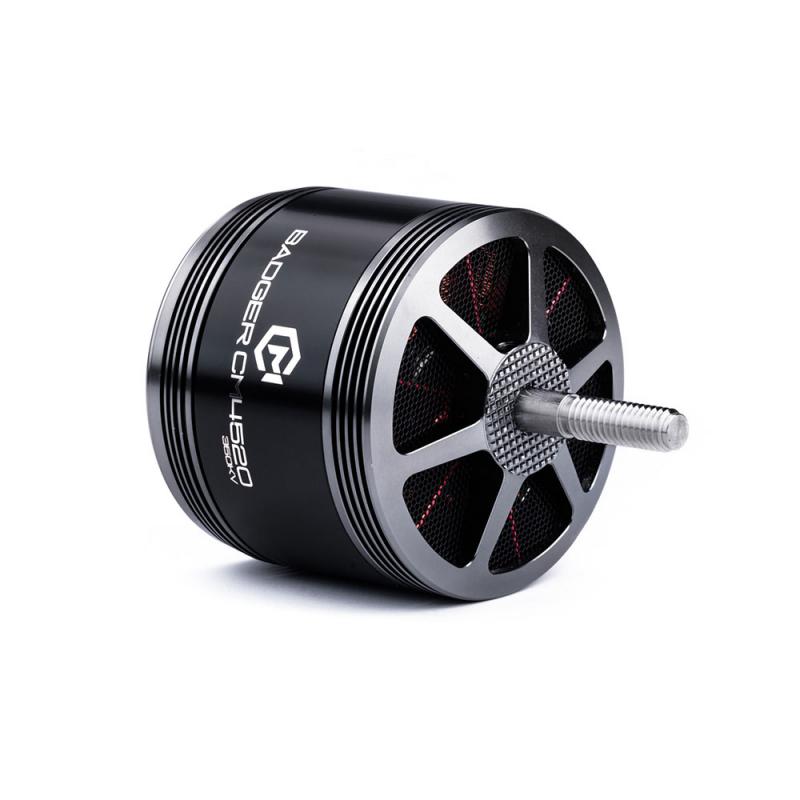

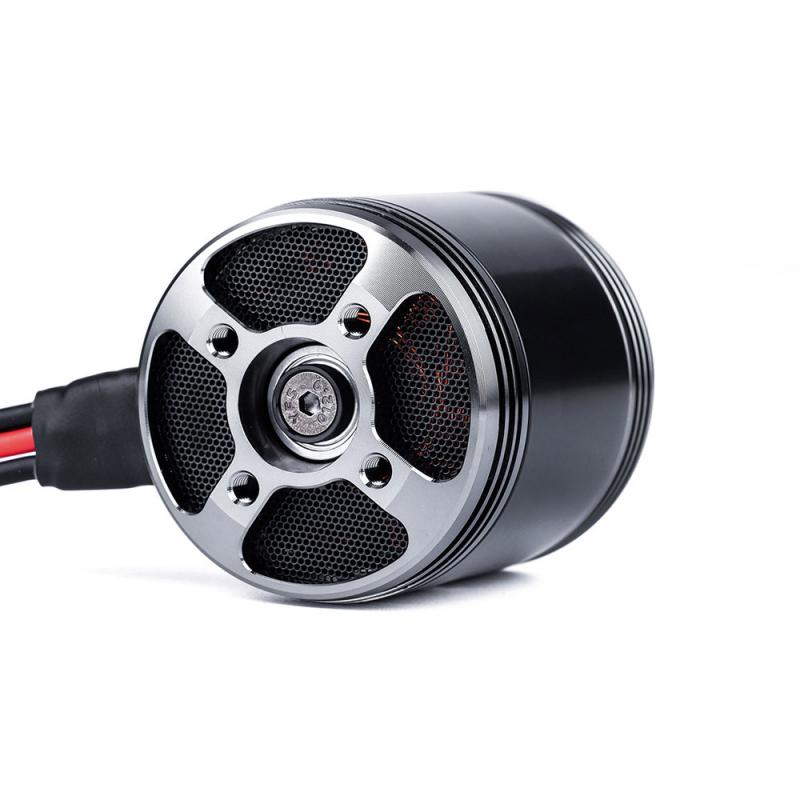

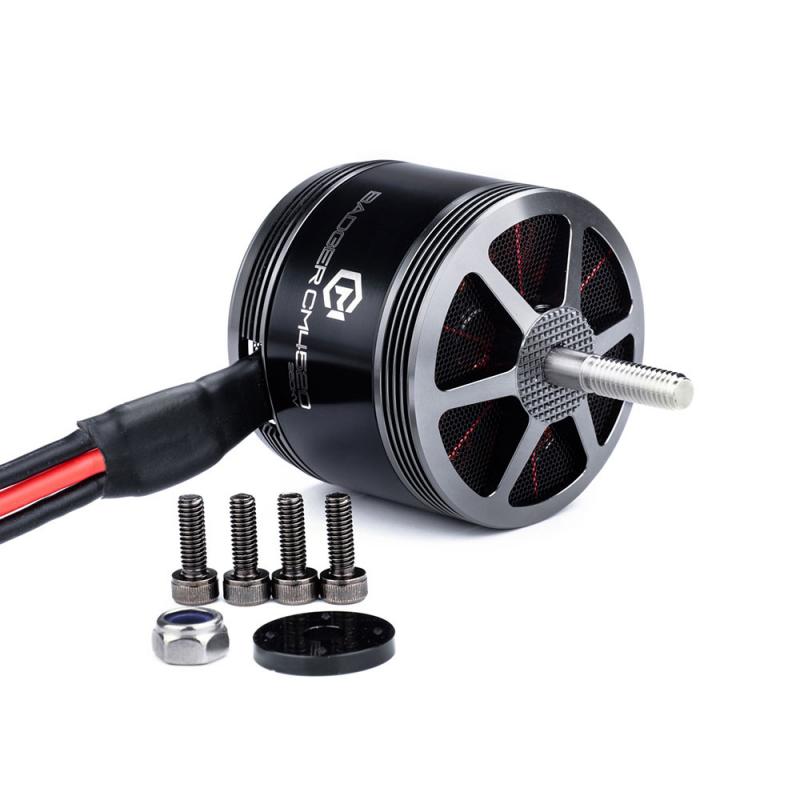

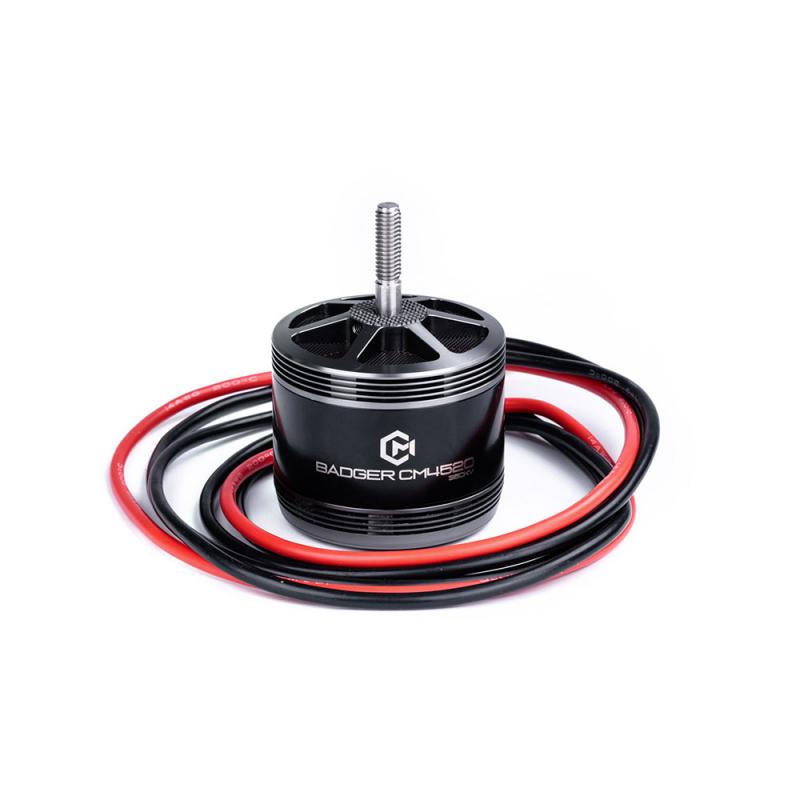

MAD Badger CM4520 IPE V1 350 KV
73.00 $
The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.
1.Two ultra-thin stainless steel dust filters are added inside the stator.
2.The split exhaust blade is added inside the rotor.
Motor Data
- Number of pole pairs: 7
- Stator: Anticorrosive
- Varnished wire Degree: 220°C
- Motor Size: D:53 × 74.7 mm
- Motor Balance: 180°C
- Propeller Mounting Holes: M6 Nut
- Cable Length: 750 mm 14# Awg silicone
- Shaft Diameter: IN: 6 mm
- Motor Mounting Holes: D:30 M4×4
- Bearing: 606 ZZ *3
- Disruptive test: 500V
