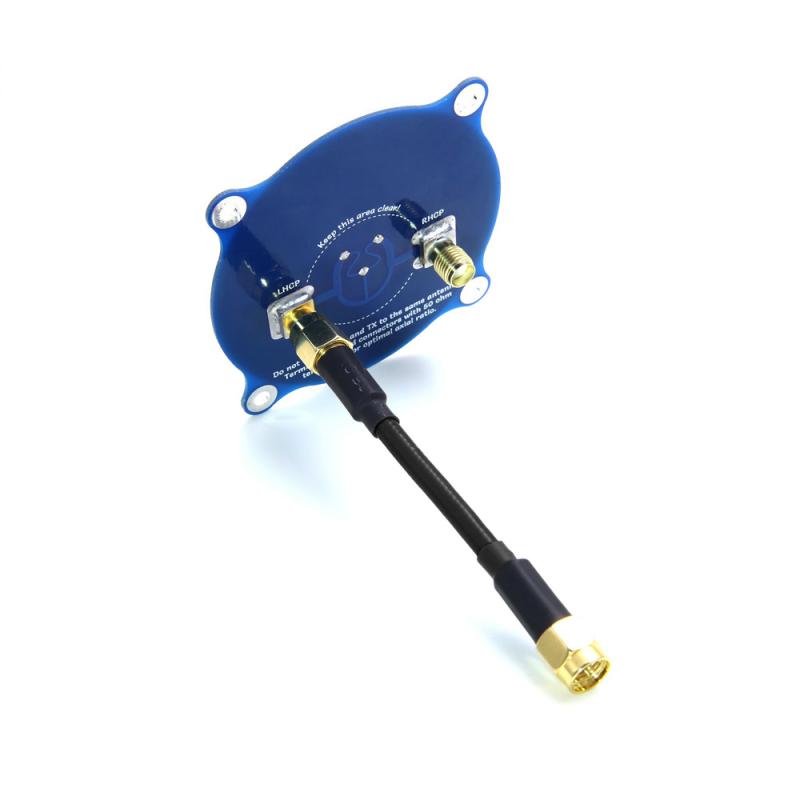

GEPRC Hobby Triple Feed Patch 1 (SMA Male)
5.8 GHz 9.4dBi Triple Feed Patch Antenna
14.90 $
Specification
| Center frequency | 5.8 GHz |
| Bandwidth | 660 MHZ (5.47-6.13ghz) |
| Match | S11 < -20 dB, VSWR < 1.22 (at the center frequency) |
| Axial ratio | < 1.3 |
| DBi antenna gain | 9.4 |
| Half power beam width | 55° (horizontal and vertical) |
| Radiation efficiency | 83.5% |
- These values are based on simulation and the actual measurements are as follows (they are very similar).
- Due to the change of the FR4 dielectric constant, the center frequency may be transferred between batches.
- And not all FR4 brands have the same dielectric constant.
- The frequency conversion to 100 MHz is normal.
Includes
- 1 x Antenna
- 1 x SMA Extension Cable
