Shop Frames Micro - 2"-3" Frame GEPRC GEP-TC18 Frame O4

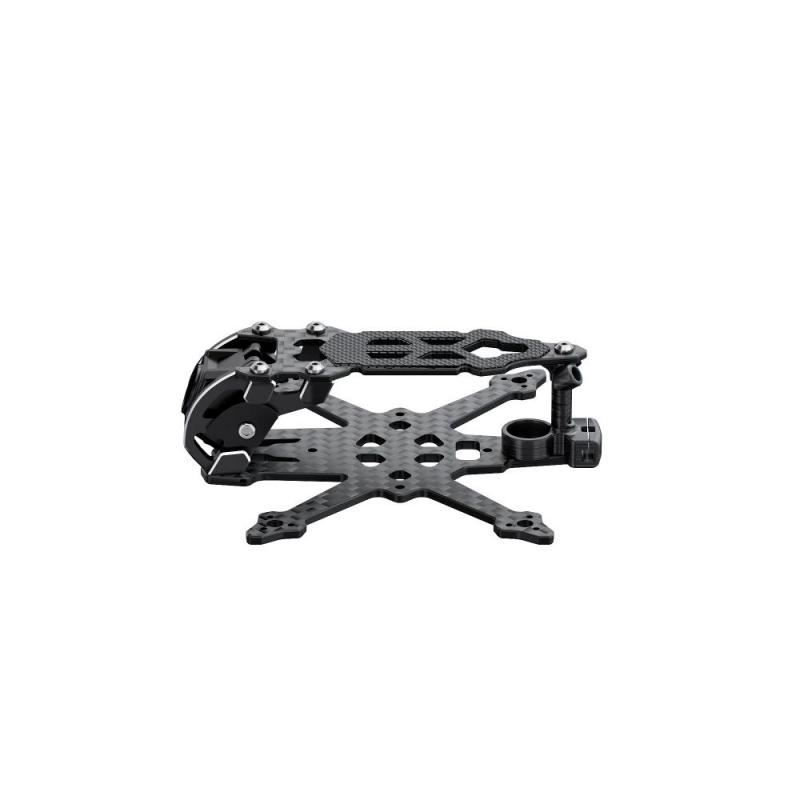

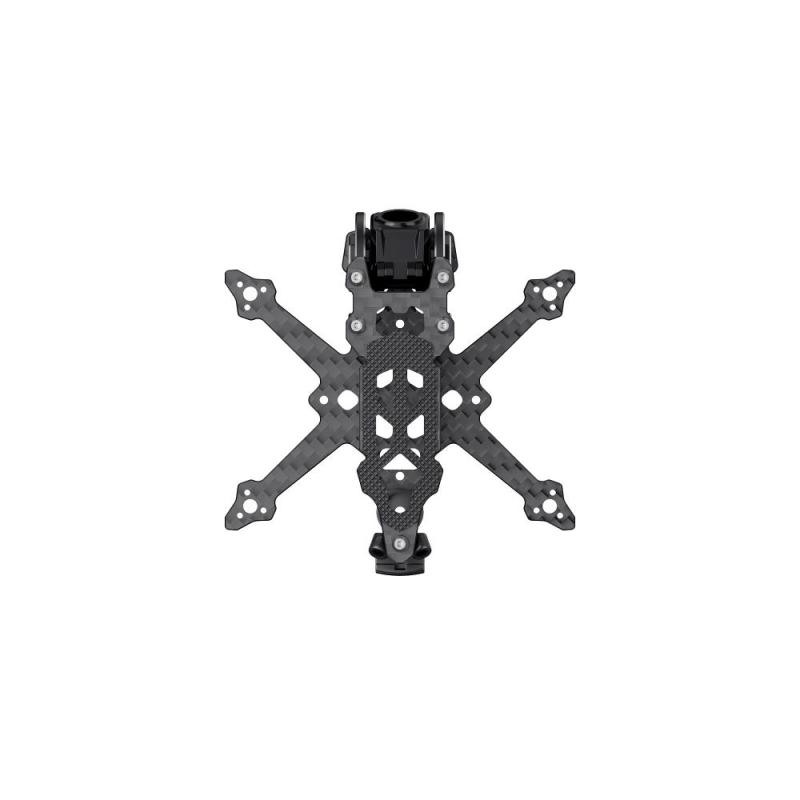

GEPRC GEP-TC18 Frame O4

17.99 $
Ships immediately
Product support
0 Ratings

Features

  • Dampening Silicone for steady, shake-free footage with O4.
  • 7075 aluminum camera mount for superior durability.
  • Integrated rear design with reserved room for buzzer and dual antennas.
  • 2mm thick arms for durability and sturdiness.

Specifications

  • Wheelbase: 87mm
  • Dimension: 100*90mm
  • Frame Type: Wide X
  • Top Plate: 1.5mm
  • Bottom Plate: 2mm
  • FC Mounting Hole: 25.5*25.5/M2
  • VTX Mounting Hole:  25.5*25.5/M2
  • Motor Mounting Hole: 6.6*6.6/M1.4
  • Camera Side Plate Gap: 14*14mm
  • Stack Mounting Height: 12mm
  • Weight: 15g

Recommended Accessories

  • Motor: 0802-1002
  • FC:TAKER F411-12A-E 1~2S AIO FC
  • VTX: DJI O4 Air Unit digital VTX
  • Propeller: HQprop 45mm
