TBS Crossfire Sixty9
What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.
49.95 $
What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.
Introducing the TBS Crossfire Sixty9, a VTx and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20.
Outputs 2x CRSF + 2x PWM directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
Features:
- Integrated video transmitter control with long range and (team-)race functions
- Dedicated low-noise power supply for receiver and video transmitter
- Sleek 20x20 mounting form factor
- Plug&play connection and solder pads connectivity
- High power analog adjustable video transmitter (up to 1W with perfect cooling)
Specifications
- Signal format: CRSF
- Frequency Min: 868 MHz (VTX)
- Frequency Max: 915 MHz (VTX)
- Input Voltage Min: 6 V
-
Input Voltage Max: 25 V
- Range: 40 km
- Channels: 12
- Channels Output formats: NTSC/PAL
-
Weight: 4 g
- Height: 5 mm
-
Width: 24 mm
- Length: 24 mm

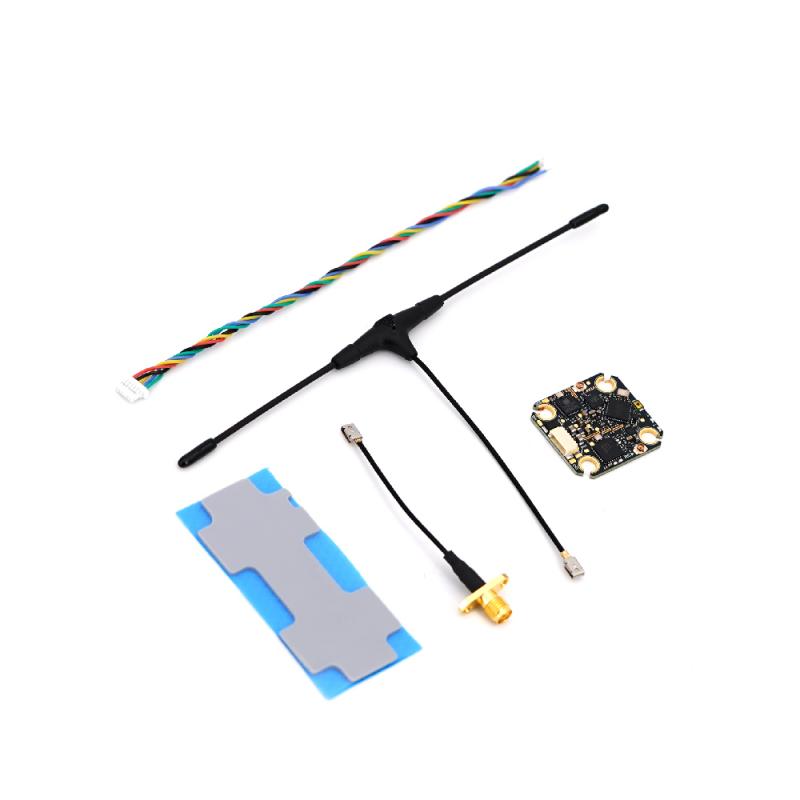

Includes
- 1x TBS Crossfire Sixty9
- 1x Locking TBS Crossfire Immortal-T antenna
- 1x Locking u.FL to SMA mount (for VTx)
- 1x JST-SH x 9 connector
- 4x M3 rubber dampers
