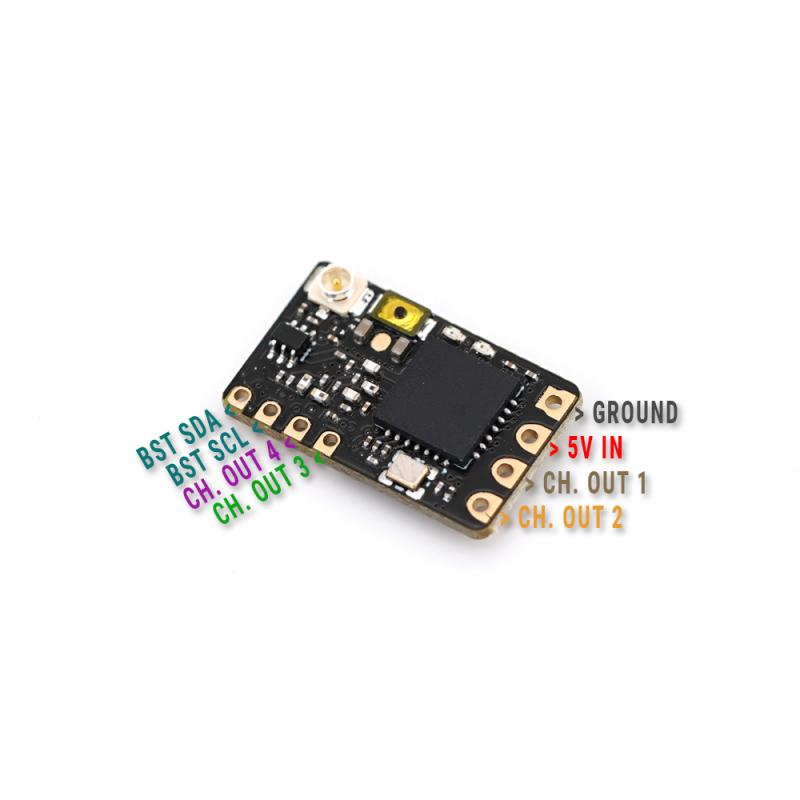

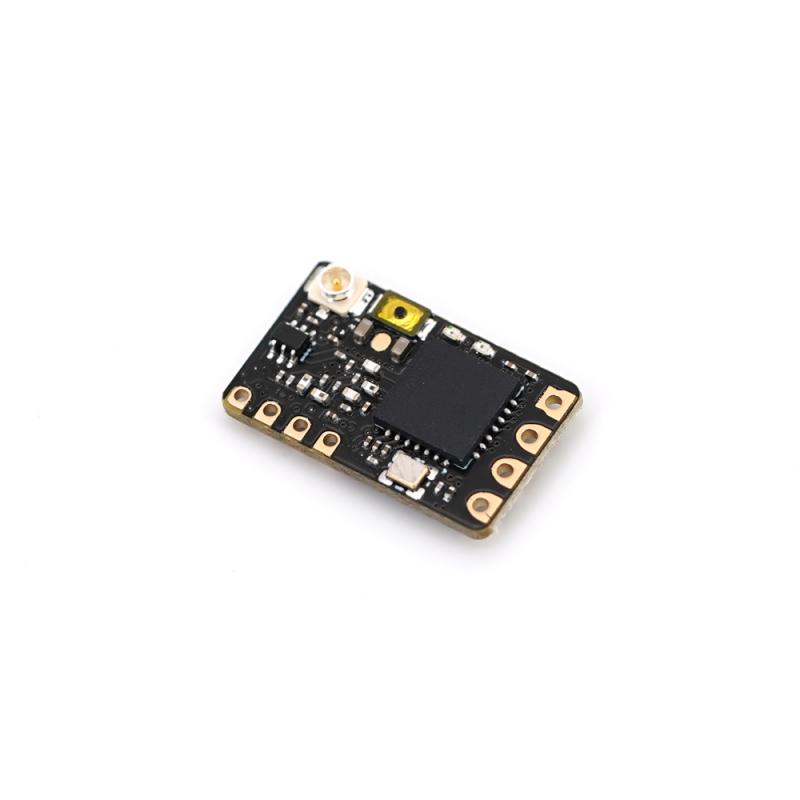

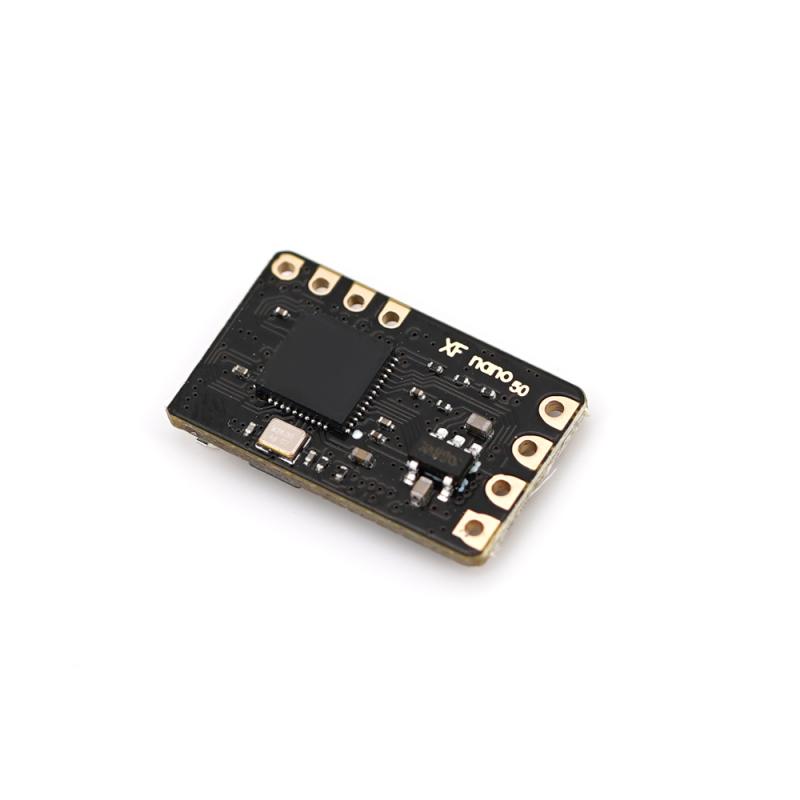

TBS CROSSFIRE NANO RX (SE) - FPV LONG RANGE DRONE RECEIVER
TBS Crossfire nano RX for people who want to save space and solder. Full range, designed specifically for mini- and micro-quads! The Special Edition (SE) includes the TBS Immortal-T V2 Antenna!
29.95 $
TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX we condense 2 years of engineering experience, listening to our customer requirements, and pushing ourselves to the maximum (or in this case, the minimum!). The end result is a full range receiver, at the smallest size of any receiver in the industry (yes, it's smaller than the XM+).
- Please use with Crossfire firmware V6.10 or above.
Specifications
- Signal format: CRSF
- Frequency Min: 868 MHz
- Frequency Max: 915 MHz
- Input Voltage Min: 3.3 V
- Input Voltage Max: 8.4 V
- Range: 40 km
- Channels: 12
- Output formats: PPM, SBUS, CRSF, PWM
- Weight: 0.5 g
- Height: 11 mm
- Width: 18 mm
- Length: 11 mm

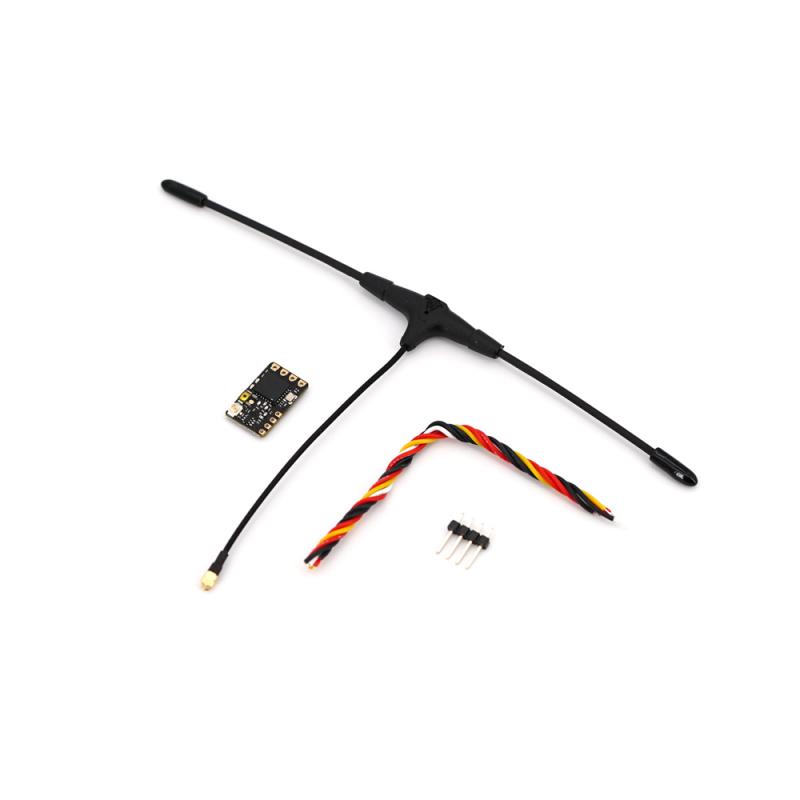

Includes
- 1x TBS Crossfire Nano Receiver
- 1x TBS Crossfire Immortal T V2 Antenna

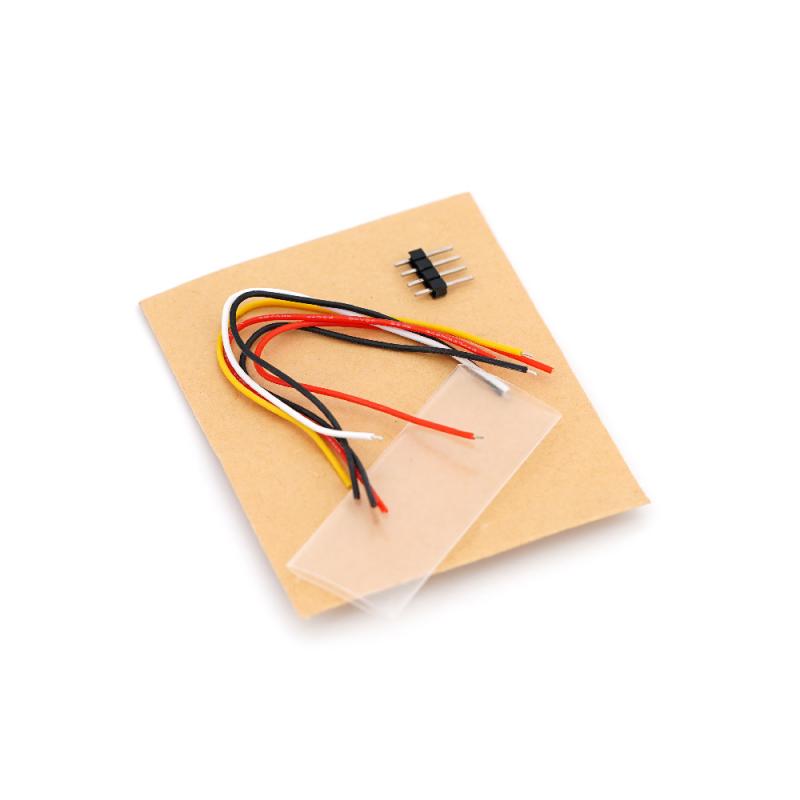

- 1x Spare shrink tube
- 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
- 1 x pin header 1x4
