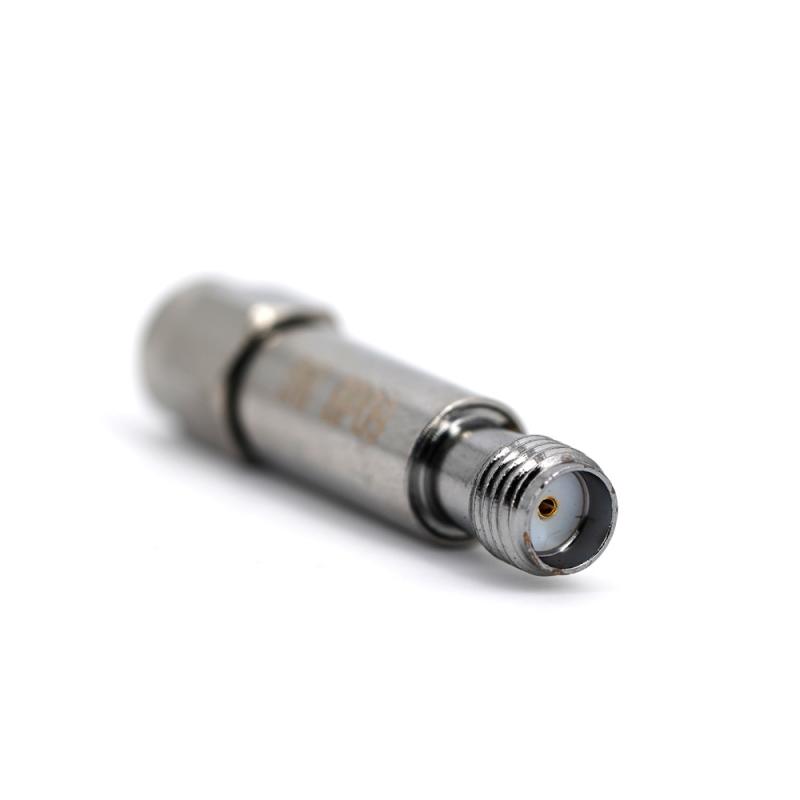

60dB Attenuator 8G
60dB attenuators for ground range tests.
9.95 $
SMA attenuators are used to reduce the input power, and therefore enable RF devices to measure stronger signals. You can also use this for preflights ground range test.
*If you plan to test the Tracer system with this, you will need to add a RPSMA-male to SMA-female adapter. (Included in the add-on section below)
Speciification
- Frequency range: DC - 8.0 GHz
- Impedance (Nominal): 50Ω
- Power rating: 2 Watt (+33dBm)
- Attenuation: 60 dB
- Tolerance: +/- 2dB/max
- V.S.W.R (Max): 1.25 : 1
- Connector type: SMA male - female
